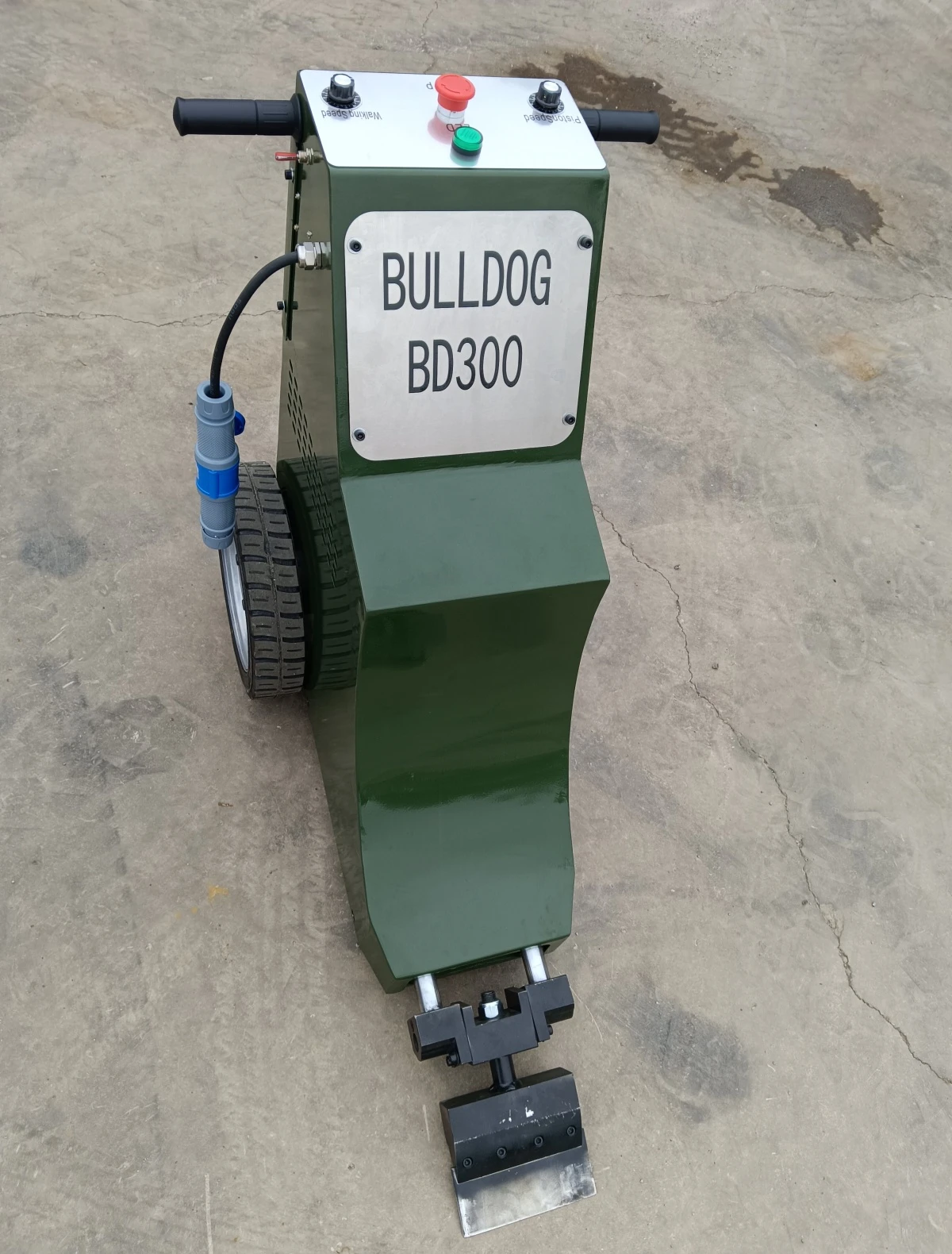

Portable Floor Scraper

We devolop and produce ZFC-300E electric portable floor scraper by ourselves. And have improved it many times, so now this machine has excellent performance. It will be your great helper for construction.

Send Inquiry

Product Introduction

Shandong Zhaofan Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of portable floor scraper in China. We warmly welcome you to buy CE approved portable floor scraper made in China here from our factory. All customized products are with high quality and low price.

Product Specifications

Specification
Voltage	Single phase 220V, 60HZ
Power	Electric
Power of walking motor	0.75KW, 60HZ
Speed control	Yes
Walking speed	0-30m/min
Piston motor power	0.75 or 1.5KW, 60HZ
Work efficiency	344/min
N.W.	160 kgs
Blade width	200-300mm
Motor	GB (Chinese National Standard)
Dimensions	1100x500x900mm
Application	Old wood floor or smail tiles, PVC floor, EPDM plastic flooring, Silicone PU plastic runway, Asphalt waterproofing, Polyurethane flooring, etc

Usage Guidelines and Maintenance Tips

1. This machine is designed for dry scraping. Do not operate it on surfaces with prolonged water accumulation or mud, as this will corrode the motor and accelerate blade wear.

2. When scraping thick ceramic tiles or stone surfaces, slow down the pushing speed to avoid sudden, strong impacts that could chip the blade or overload the motor.

3. After each day's work, clean the blade crevices of adhesive residue and tile debris to prevent uneven blade wear caused by material jamming and one-sided pressure.

4. Dry scraping operations must be performed using an industrial vacuum cleaner. Do not scrape dry without a vacuum, as dust will accelerate motor wear and shorten the machine's lifespan.

5. For long-term storage, clean the entire machine of dust. Fold the handle and store it in a dry, well-ventilated area. Store the power cord and alloy blades separately in a dustproof container.
